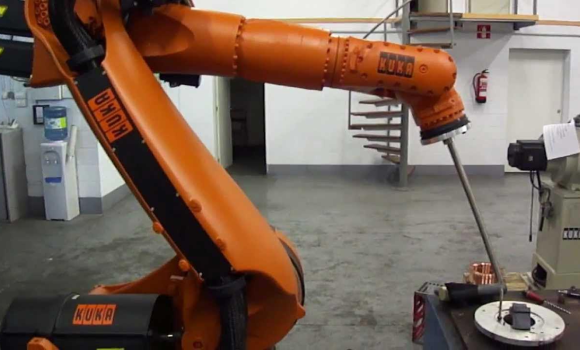

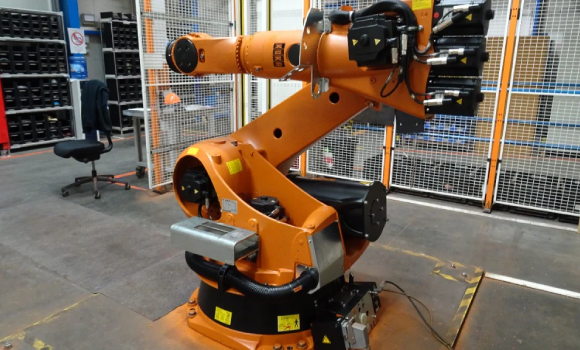

Robot KR150/2

Kuka KR150/2; KRC1 Controller

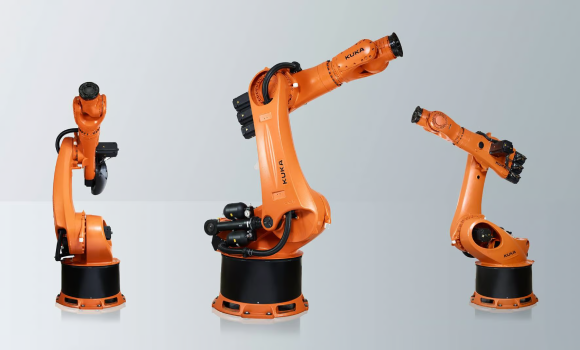

The KUKA KR 125/150/200 family of robots is one of the most popular industrial robot types. BMW, Volkswagen Audi Group, Daimler and many more use them. The lightweight arm is of a single sided design that gives an improved work envelope.

The KUKA KR125/150 /200 range are multi-purpose 6 axis robots and can be used in a wide range of applications, from palletizing to milling, welding, de-burring and machine tending.

The arm is largely constructed of aluminum making it nearly half the mass of a comparable ABB robot. This means it is faster and more energy efficient. The base of the robot has forklift points built in.

Repeatability is an exceptional; +-0.3mm for the 200kg version and +-0.2mm for the 125 and 150 models.

The KRC1 controller is PC based and runs windows. Because of this it has a huge amount of free memory and has great connectivity, better than a comparable ABB controller for example. Physically the KRC1 controller is very compact and can be stacked. The cables from Controller to robot are 10m long. The controller has both CD rom and floppy disc drives.

The KRC1 has built in 16 inputs and 16 outputs of up to 100mA and a further 4 outputs at up to 2A these are on the X11 connector along with the safety circuit connections. The I/O can be easily expanded using devicenet units up to a total of 1024 inputs and 1024 outputs. Fibre optic Interbus is available as an option.

The KCP teach pendant as a very large colour screen and a unique 6-axis joystick, although many prefer to simply use the buttons to control the axis. The good screen means that the pendant can be used as a good alternative to a separate HMI. As well as programming via the pendant programs can be written or edited using wordpad or ultraedit. For full offline programming and simulation Kuka have their Simpro software available. There are three types of KR150: KR150/2 with 150kg payload and 2410mm reach KR L150/2 with 150kg payload and 2610mm reach KR150 L120/2 with 120kg payload and 2810mm reach

Robot Information
Specifications Motion Speed Motion Range
Axes: 6 J1 110 °/s (1.92 rad/s) J1 ±185°
Payload: 150.00kg J2 110 °/s (1.92 rad/s) J2 +155° - 119°
H-Reach: 2700.00mm J3 100 °/s (1.75 rad/s) J3 ±350°
Repeatability: ±0.1200mm J4 170 °/s (2.97 rad/s) J4 ±125°
Robot Mass: 1245.00kg J5 170 °/s (2.97 rad/s) J5 ±350°
Structure: Articulated J6 238 °/s (4.15 rad/s)
Mounting: Floor
Robot Information
Specifications
Axes: 6
Payload: 150.00kg
H-Reach: 2700.00mm
Repeatability: ±0.1200mm
Robot Mass: 1245.00kg
Structure: Articulated
Mounting: Floor
Motion Speed
J1 110 °/s (1.92 rad/s)
J2 110 °/s (1.92 rad/s)
J3 100 °/s (1.75 rad/s)
J4 170 °/s (2.97 rad/s)
J5 170 °/s (2.97 rad/s)
J6 238 °/s (4.15 rad/s)
Motion Range
J1 ±185°
J2 +155° - 119°
J3 ±350°
J4 ±125°
J5 ±350°
